Dyno Runs

This is the first dyno run I've ever done on a bike. After I fitted the Arrow pipes to my RS250 I wanted to make sure everything was running well. Below is the graph produced. Maximum bhp is 62 and the bike was running well. I down jetted from the standard jets on the recommendation of Arrow. The bike revved better and further. The power band was much more prominent and power felt much better. Sounded good too.

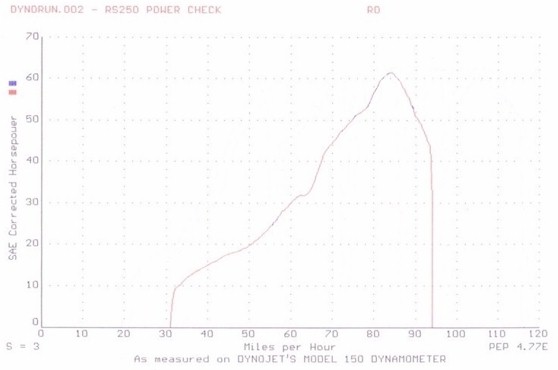

Aprillia RS250 dyno graph

Below is the predicted power increase Arrow expect from their pipes. Looks like 52bhp is expected. Something must be amiss as I reached 62!

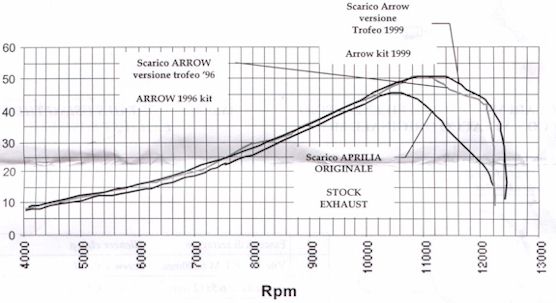

Aprillia RS250 suggested power output from Arrow
